Block Force Trauma

Will you survive the rumble?

An extension of Rumble Tumble, Block Force Trauma is a physical board game with digital companion playing cards.

View more working details

Project Type

Game Design

Duration

10 weeks, Winter 2020

Tools

Physical materials, Figma

Team

4 UX Designers

Design Digest

As a UX designer and strategist for Block Force Trauma, I helped evolve the core mechanics of our previous game, Rumble Tumble, into a new interactive format. I collaborated with my physical computing teammates to define the game’s logic, refine its player experience, and lead playtesting efforts. I also assisted in the coding and development of the digital assets, helped document rules, troubleshoot gameplay interactions, and ensure the game was intuitive, fun, and inclusive.

Introducing Block Force Trauma

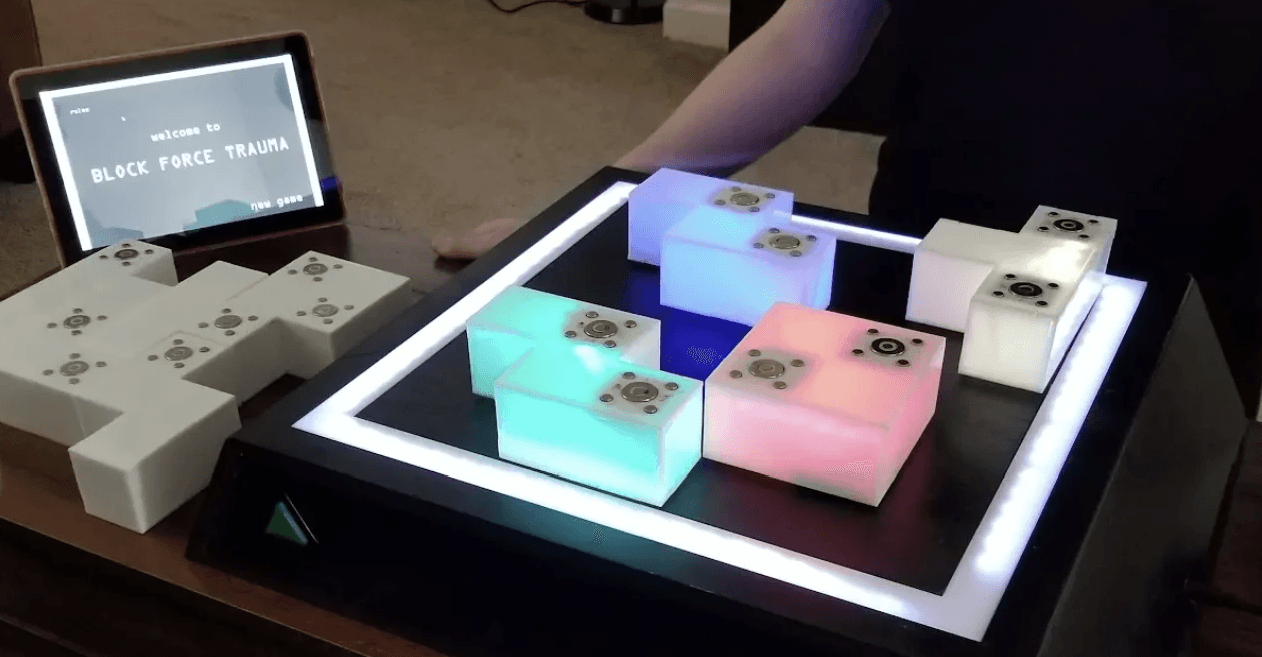

Block Force Trauma is an electrified evolution of our tactile stacking game, designed to teach and challenge players in strategy, balance, and adaptability. We added responsive lighting, reactive rumble mechanics to the physical choas, and a digital twist using Kano computing. The game invites players to build and sabotage towers through luck and calculated card play, all while the system decides their fate with unexpected “rumbles” that decide players' fate.

Click to view the vision video

Discover

Through initial research and playtests, we discovered how much players loved the suspense and tactile thrill of physical building and random destruction. We also noticed opportunities to add more dynamic interactions and feedback, particularly around punishment and reward systems. Our challenge was to increase the replayability and interactivity of the game, ideally using responsive technology, without compromising its simplicity or accessibility.

Continuing the sucesss of Rumble Tumble

Building on the chaos of Rumble Tumble, we set out to explore how we could integrate responsive technology into a block-stacking game. During early discovery, we brainstormed ways to create a more immersive and reactive play experience. This led us to experiment with interactive components like light-up blocks and automated rumble responses. Through playtesting and team ideation, we uncovered opportunities to raise the stakes—not just with unstable towers, but with surprise disruptions and strategic sabotage. We also observed how players responded emotionally to unpredictability and control, which helped us refine the core tension and fun of the game.

Continuing the sucesss of Rumble Tumble

View project Rumble Tumble

Define

Our goal: create a game where players could physically and digitally interact with their environment in a way that felt meaningful and strategic. The gamen needed to preserve the fun of physical block stacking while introducing a new mechanic to raise the stakes—reactive light blocks and randomized tower sabotage through “rumble cards.” We also prioritized modularity and accessibility, ensuring the rules were easy to follow while offering layers of depth.

Initial Concept

Fun and light up building blocks allow the users to build unique towers and structures. Players draw cards which dictate their moves including block cards and game play cards. Players may build their towers in ways that interfere with other player’s towers. As blocks establish connections with each other, the LEDs illuminate. If a player draws a rumble card, they must press the rumble button which will cause the lights to flicker and may kill a few blocks; any blocks no longer illuminated are removed from the player’s tower. The player continues playing with the leftover blocks. Whoever runs out of blocks first wins the game.

Initial Concept

Initial Concept

Design

We designed the board to include rumble response logic tied to each player’s button. If a rumble card was drawn, a microcontroller triggered lights in tower blocks—some of which would “shut off,” signaling players to remove them. I helped map out these rules, created early card prototypes, and coordinated gameplay UX documentation. We designed around fairness, randomization, and strategy, prototyping new card mechanics and rebalancing to ensure engaging dynamics. As lead coder, I helped ensure all digital assets functioned and were easy for end users to interact with.

Vision Statement

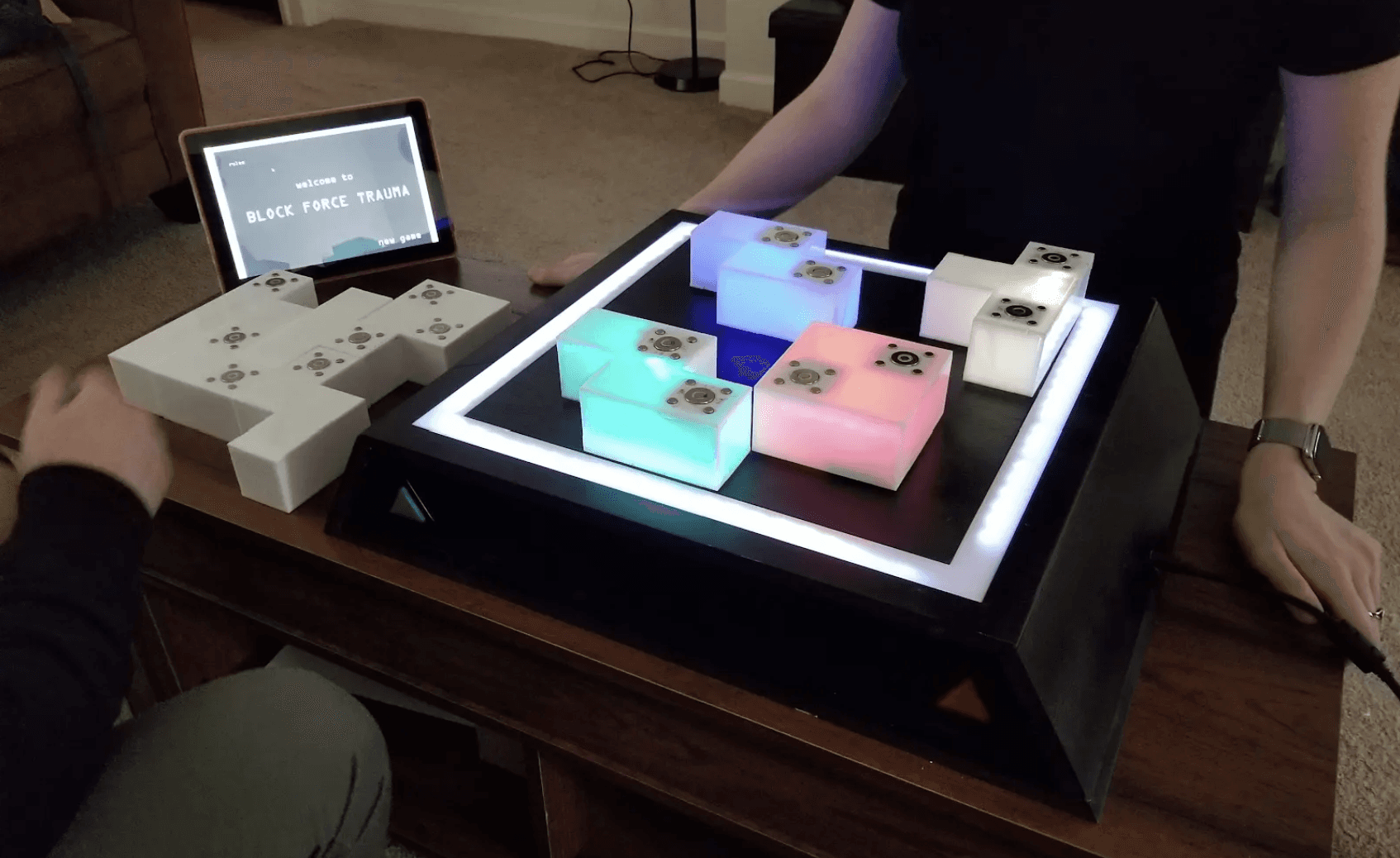

A game of skill and luck, the game challenges players to build their tower to reach the top while obstructing other players building abilities.

Vision Statement

A game of skill and luck, the game challenges players to build their tower to reach the top while obstructing other players building abilities.

Video: The making of Block Force Trauma

Click to view the vision video

Vision Statement

A game of skill and luck, the game challenges players to build their tower to reach the top while obstructing other players building abilities.

Vision Statement

A game of skill and luck, the game challenges players to build their tower to reach the top while obstructing other players building abilities.

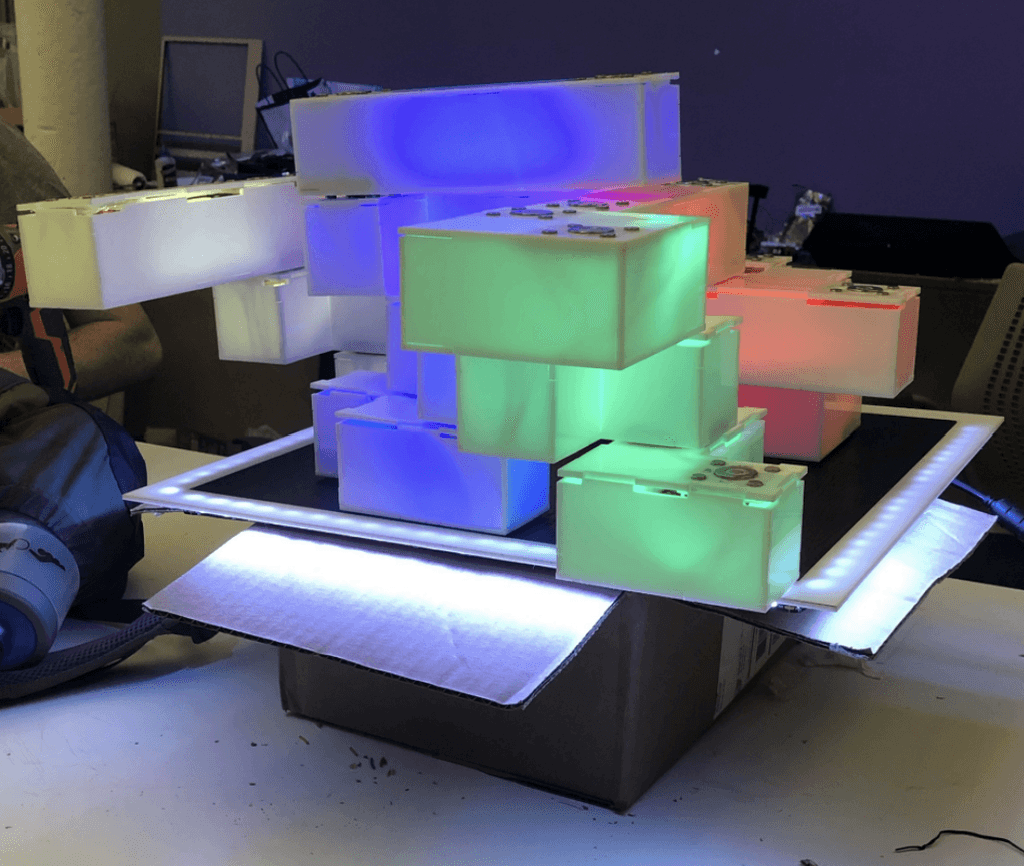

The Board

The board in Block Force Trauma serves as both the literal base and the core source of chaos in the game. Built using physical computing and rapid prototyping, we engineered a reactive platform with embedded lights and a motorized, weighted mechanism beneath the surface. When triggered by a pressable button, the board delivers an unpredictable “rumble” that puts every player’s tower at risk. To bring this effect to life, we carefully calibrated responsive lighting and sensor-driven feedback which elevated the experience—making each turn not only a test of stability but also of nerve. The result is a strategic and suspenseful gameplay feature that adds energy, unpredictability, and delight to every match.

The Board

The Blocks

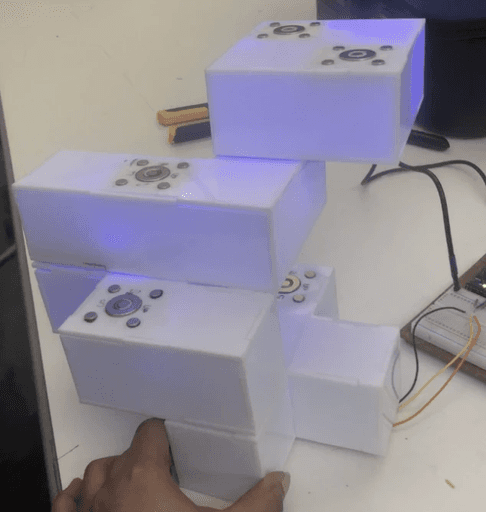

We designed and laser cut the blocks before embedding magnets, wiring, and LEDs for gameplay.

The Blocks

We designed and laser cut the blocks before embedding magnets, wiring, and LEDs for gameplay.

The Blocks

We designed and laser cut the blocks before embedding magnets, wiring, and LEDs for gameplay.

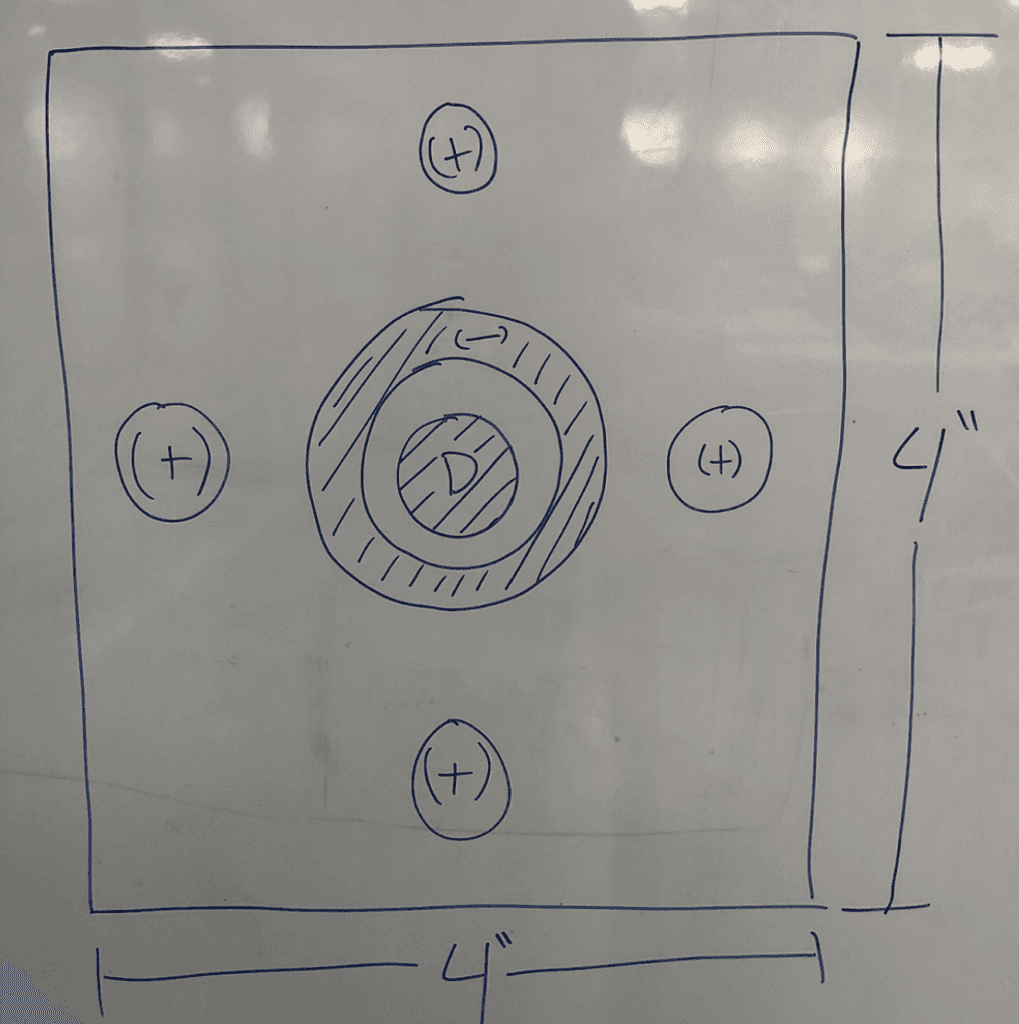

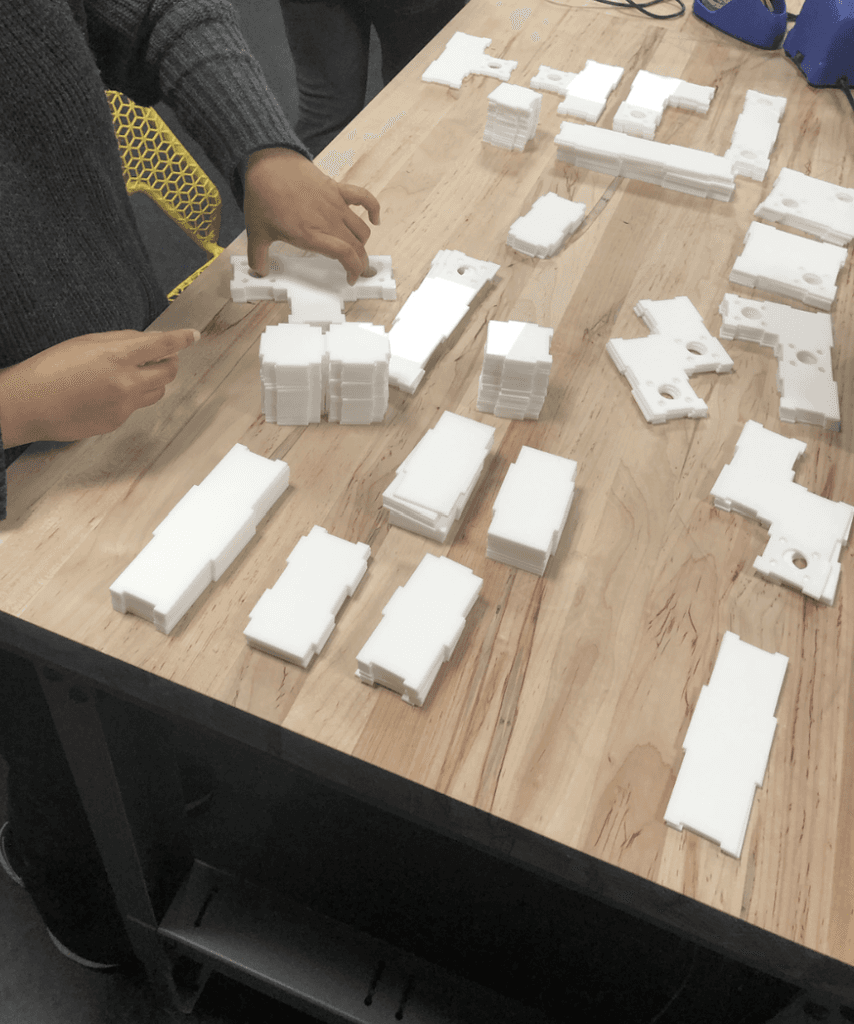

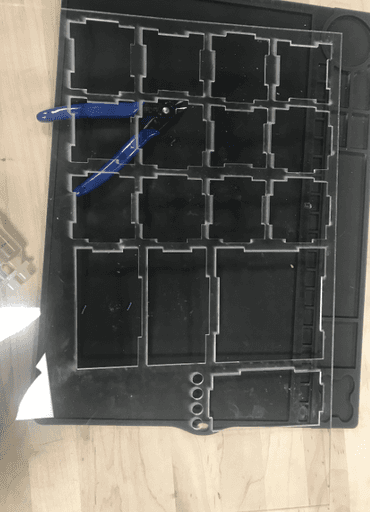

Laser Cutting: We mapped the dimensions of each type of block and transferred the file into illustrator for laser cutting. Our initial laser cutting ran into some errors and we got crunched for time. Today, we have the simplest blocks we’d like and may be increasing complexity as we go.

Test blocks with clear plastic:

Opaque laser cut plastic test blocks:

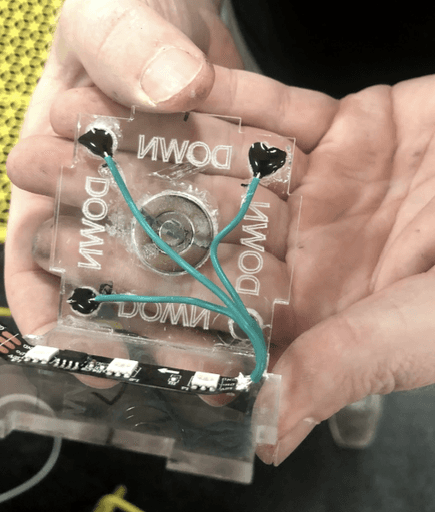

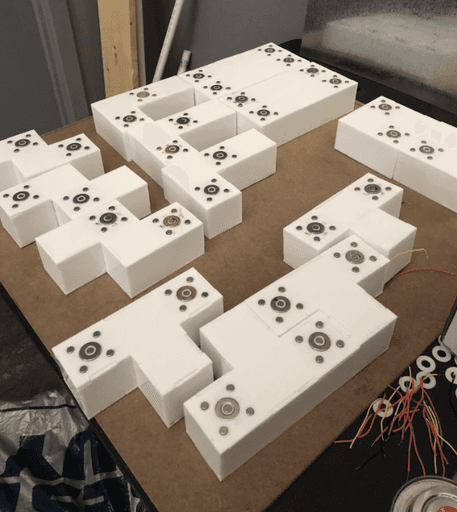

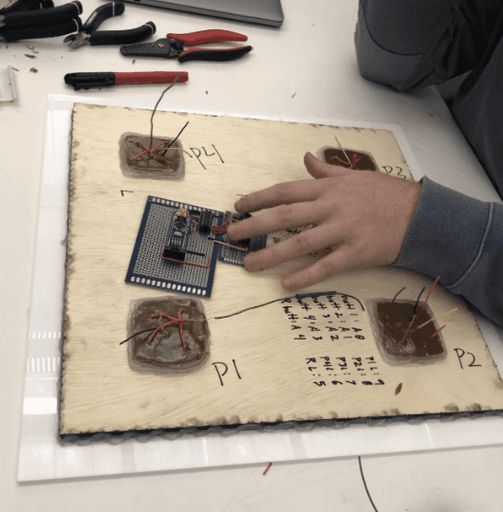

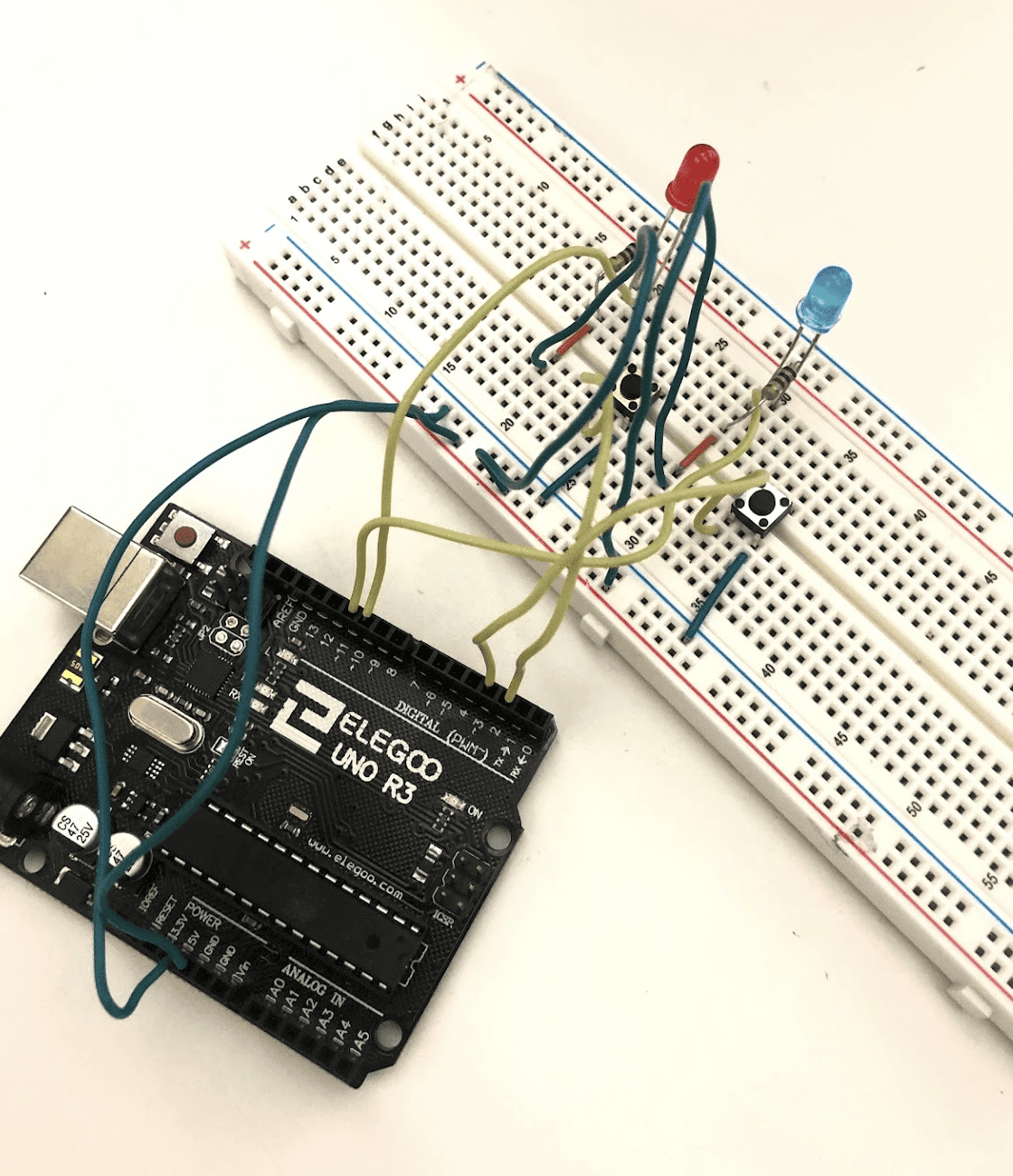

Wiring:

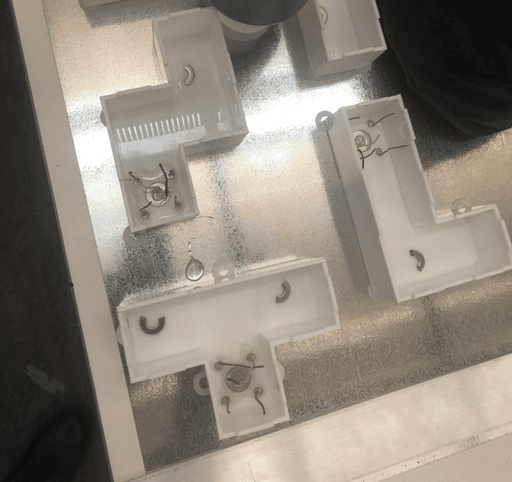

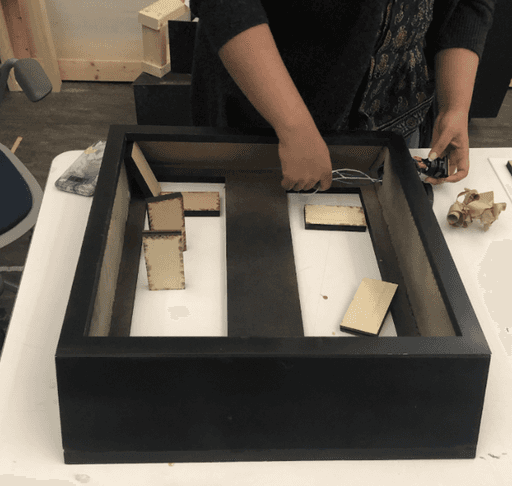

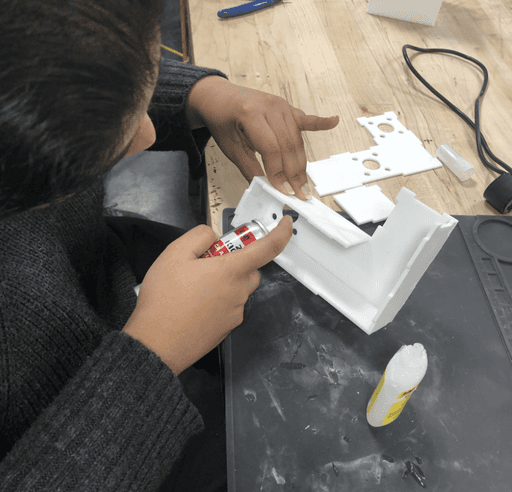

Assembly: We found various problems with the glue and adhesives we were using being messy (a problem warned to us). We found a way around this using a spray adhesive that works and cures very well. We also experimented with graphite powder in our poxy mix to make the adhesive itself conductive. We found that we needed to pay special attention to the RGB strips that we were using and which way they went-we knew they are directional but routinely put it in the wrong direction and had to restart.

The Cards

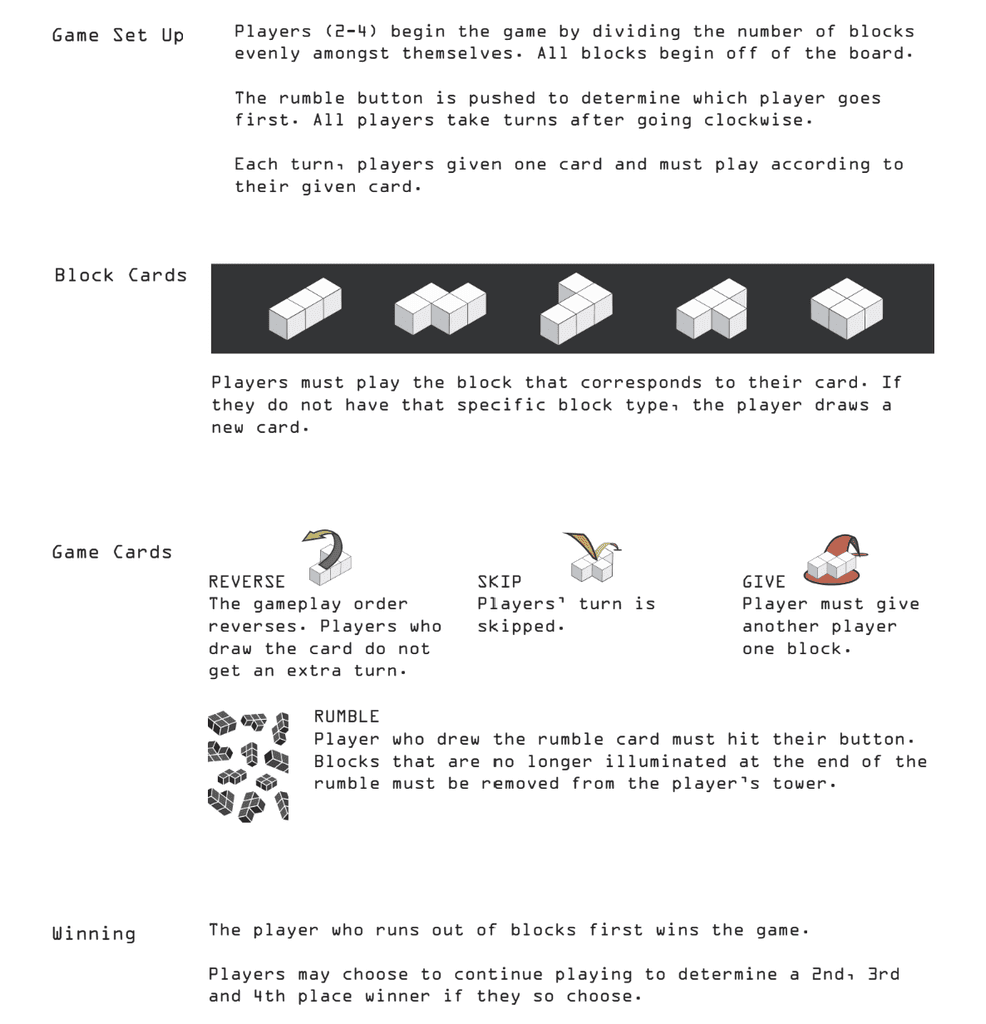

I personally designed the full deck of action and brick cards, combining my UX design expertise with playful illustration and typography. Every card was created to be easily understood at a glance at the simple digital screen. Here are the tutorial screens:

The Cards

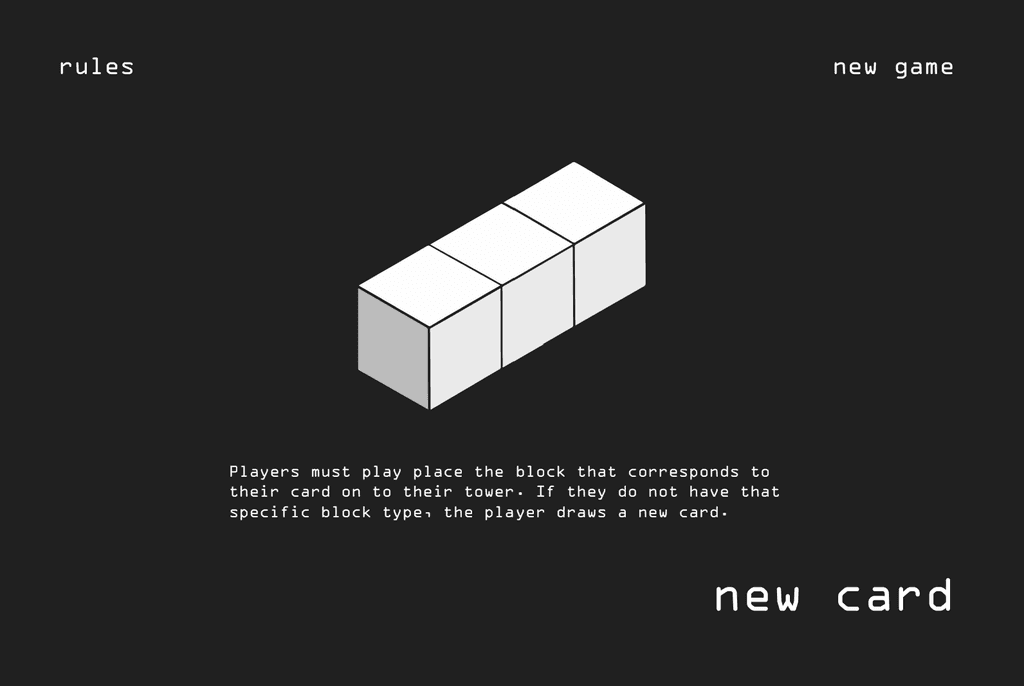

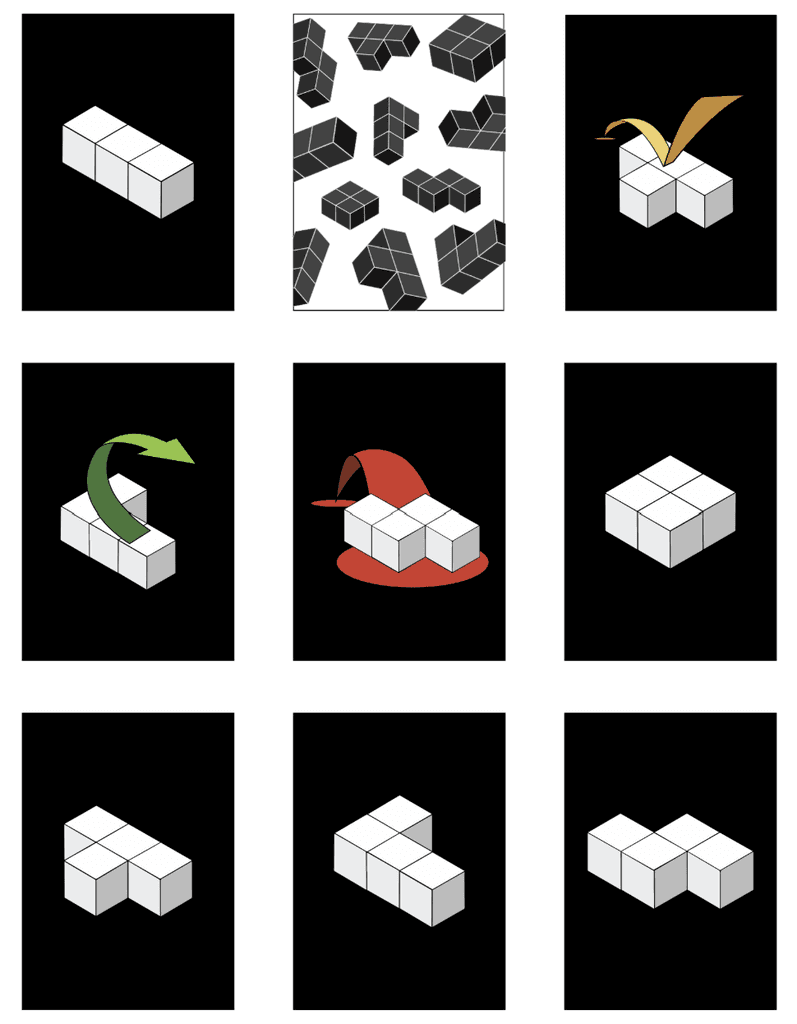

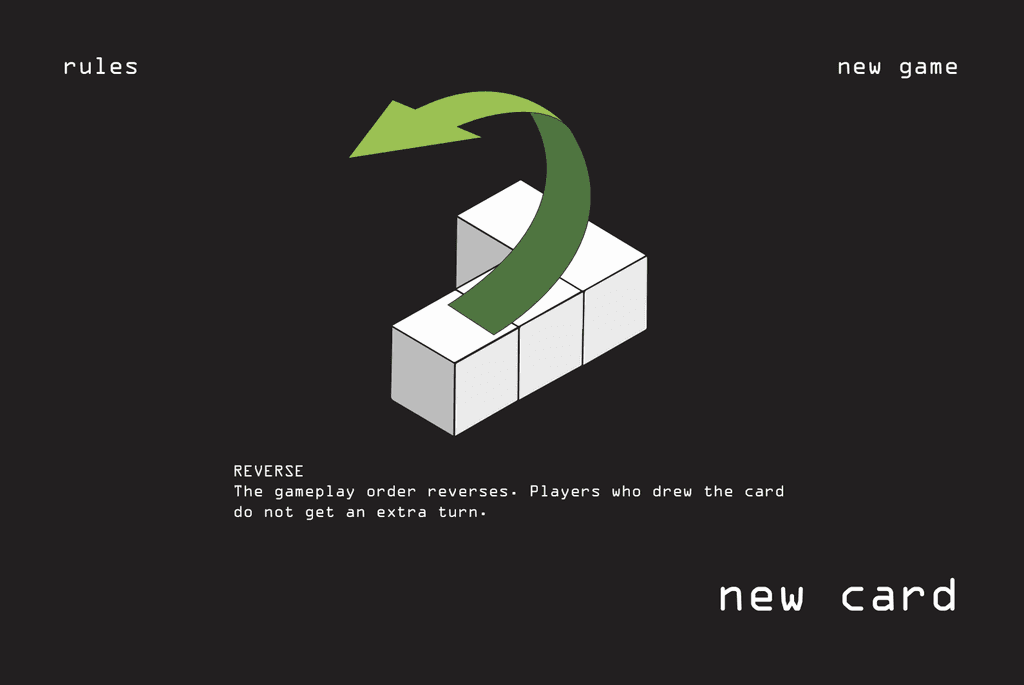

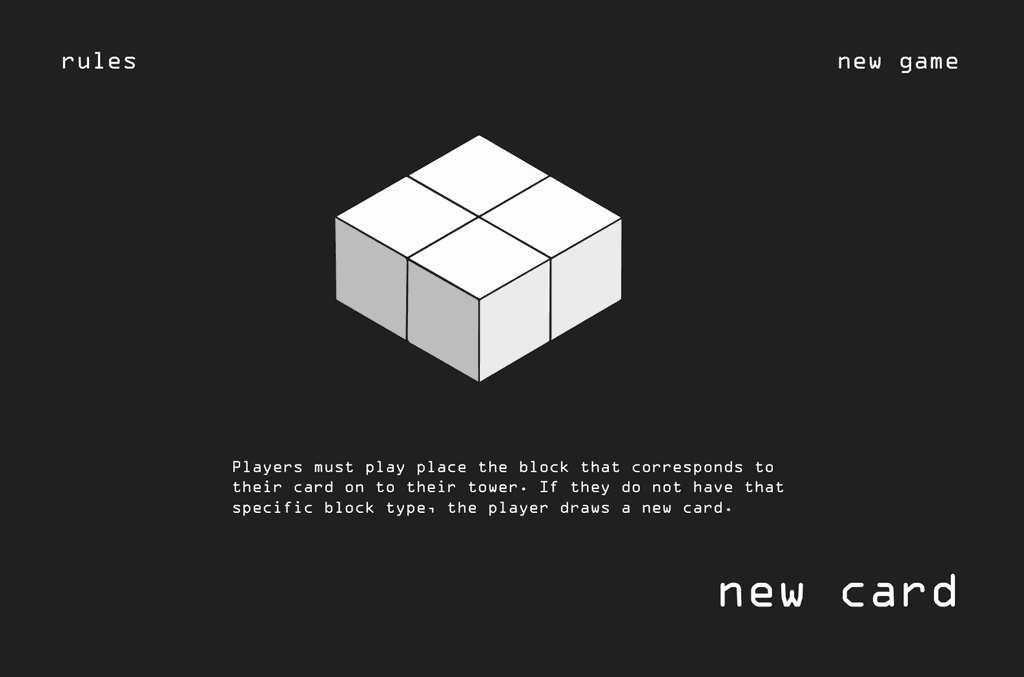

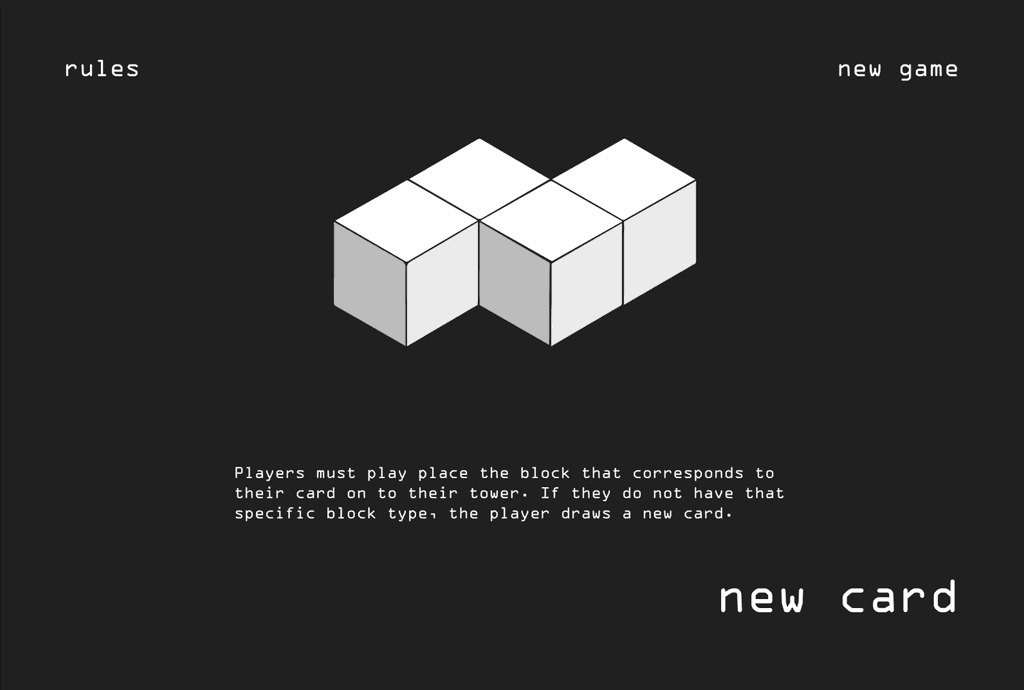

A card was created for each block shape:

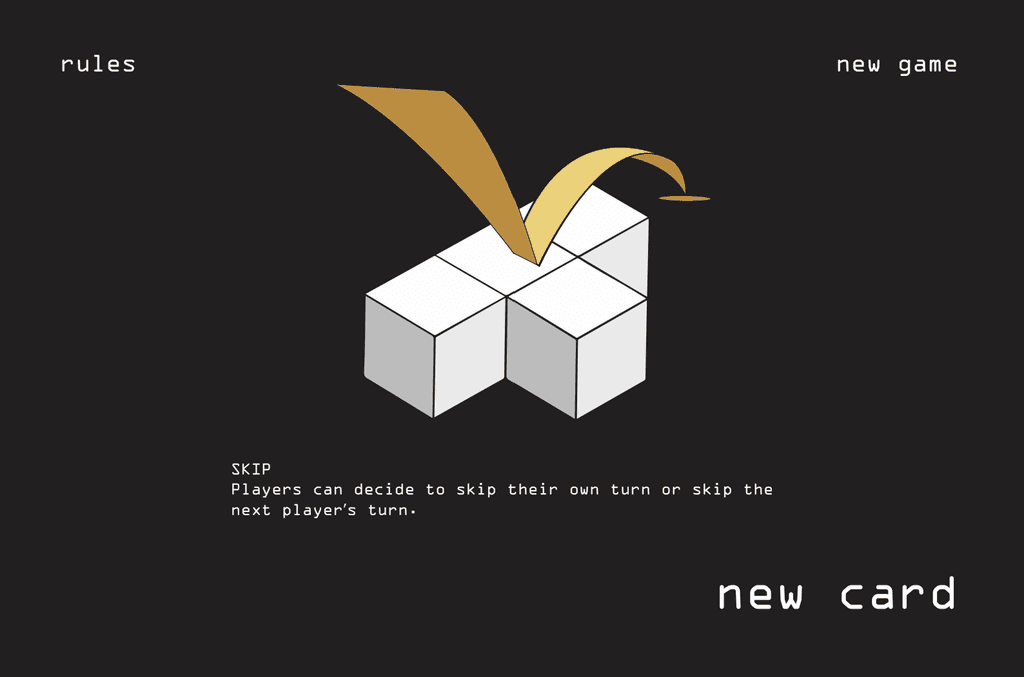

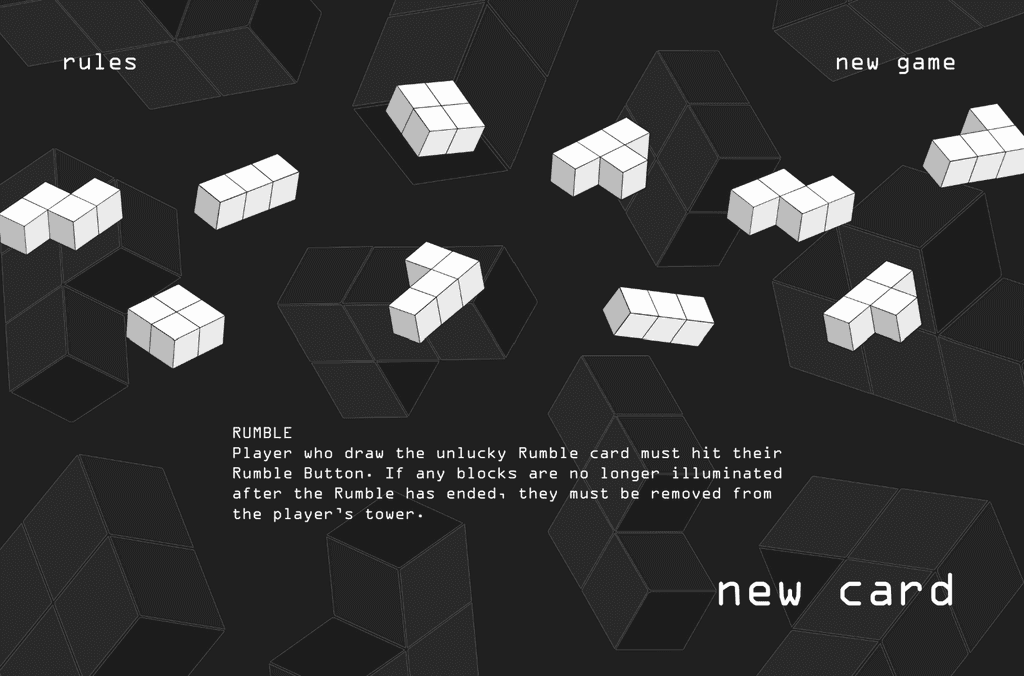

Special action cards were also included:

The Code

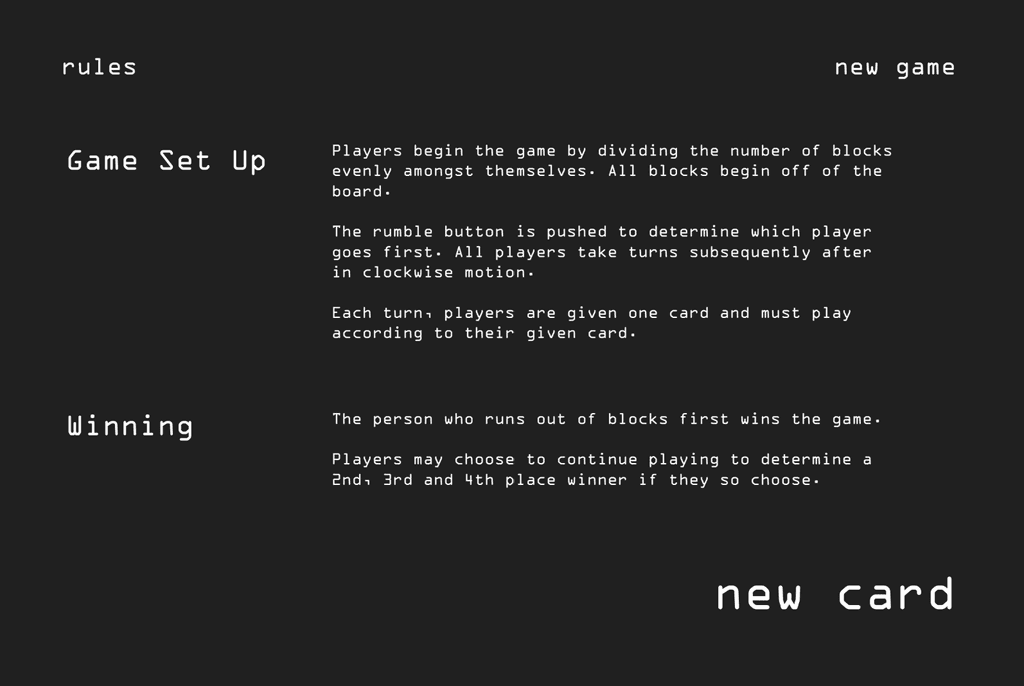

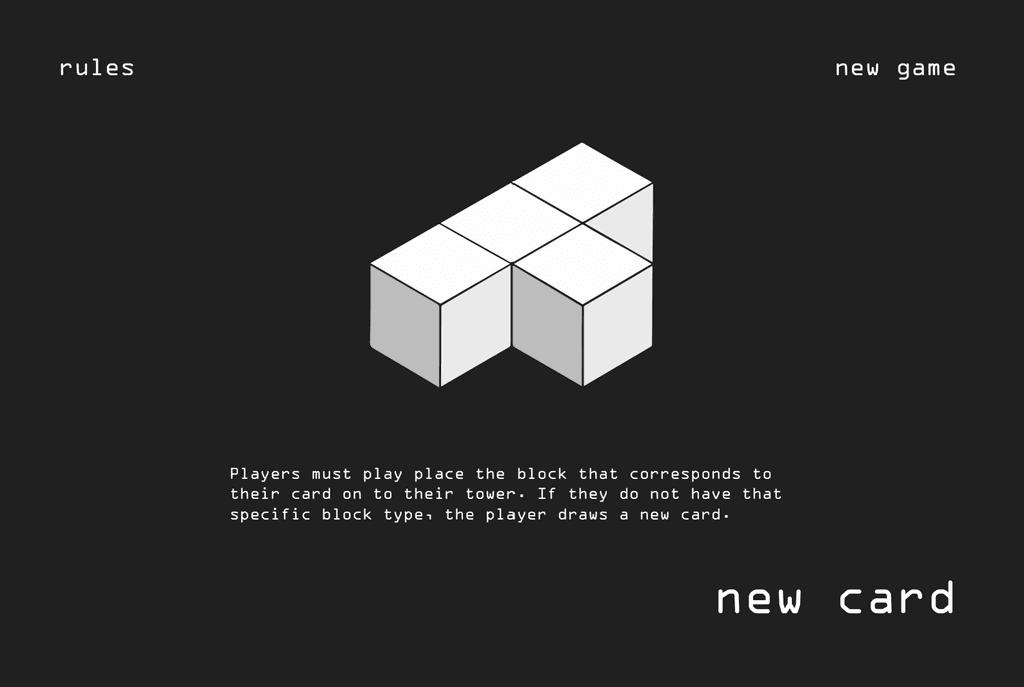

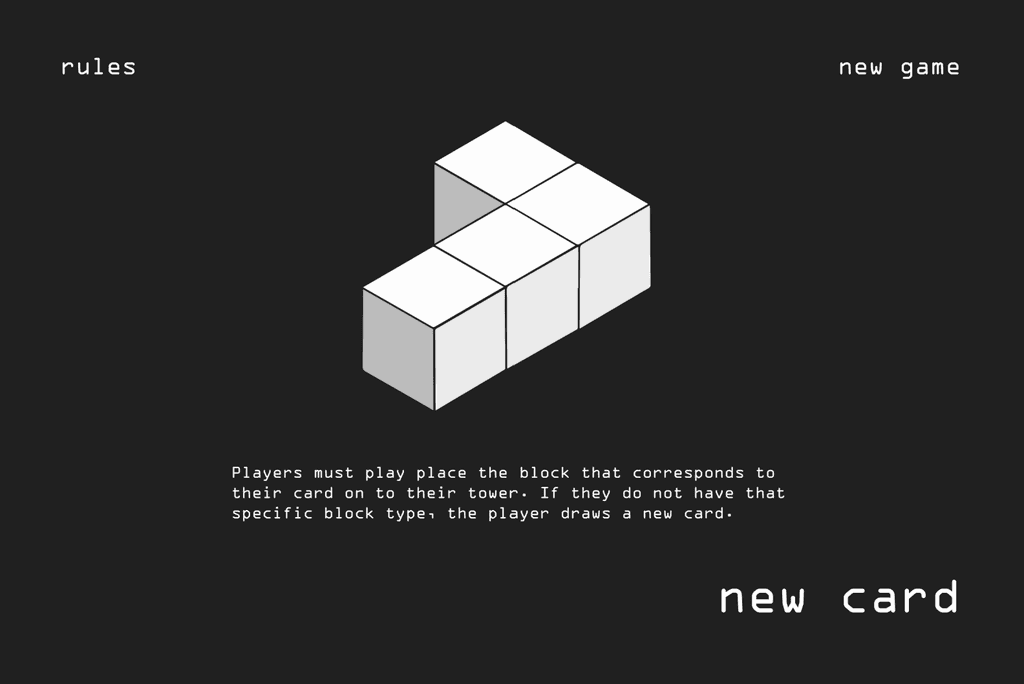

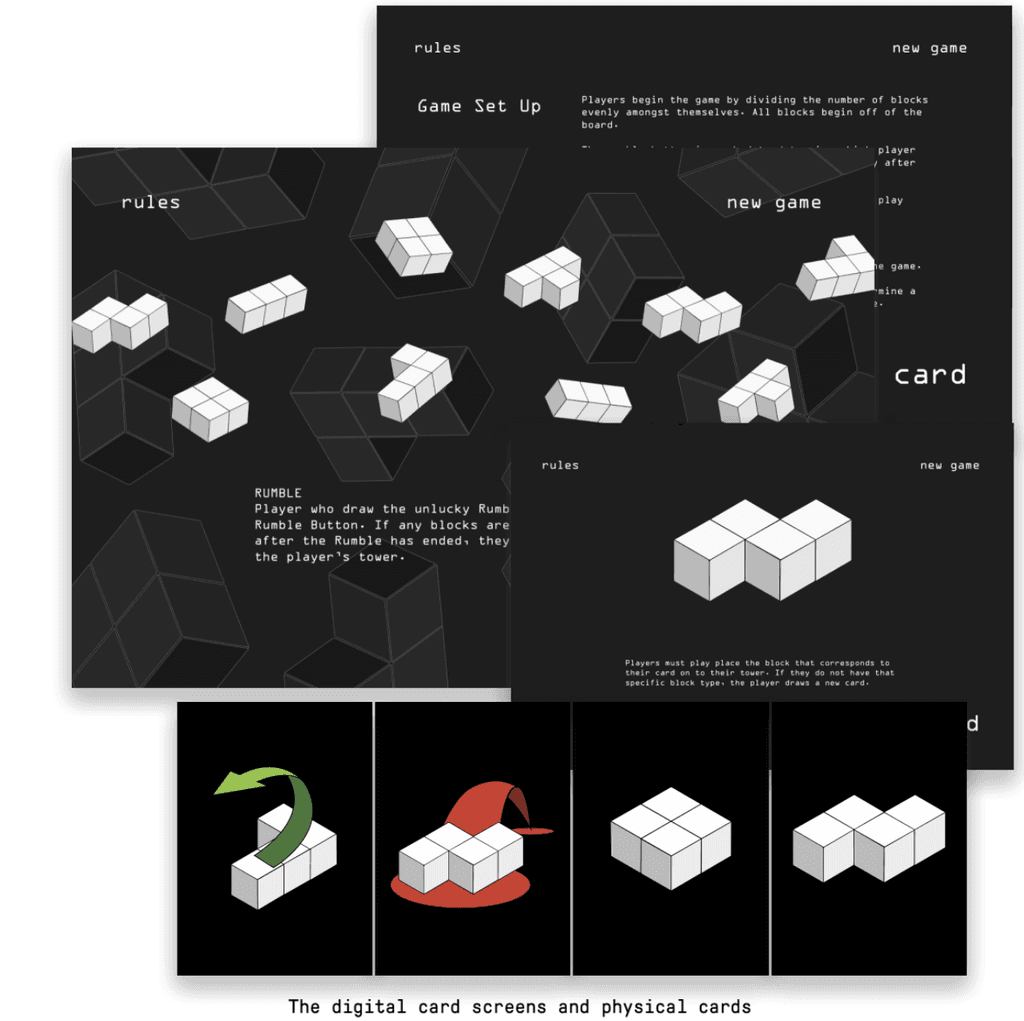

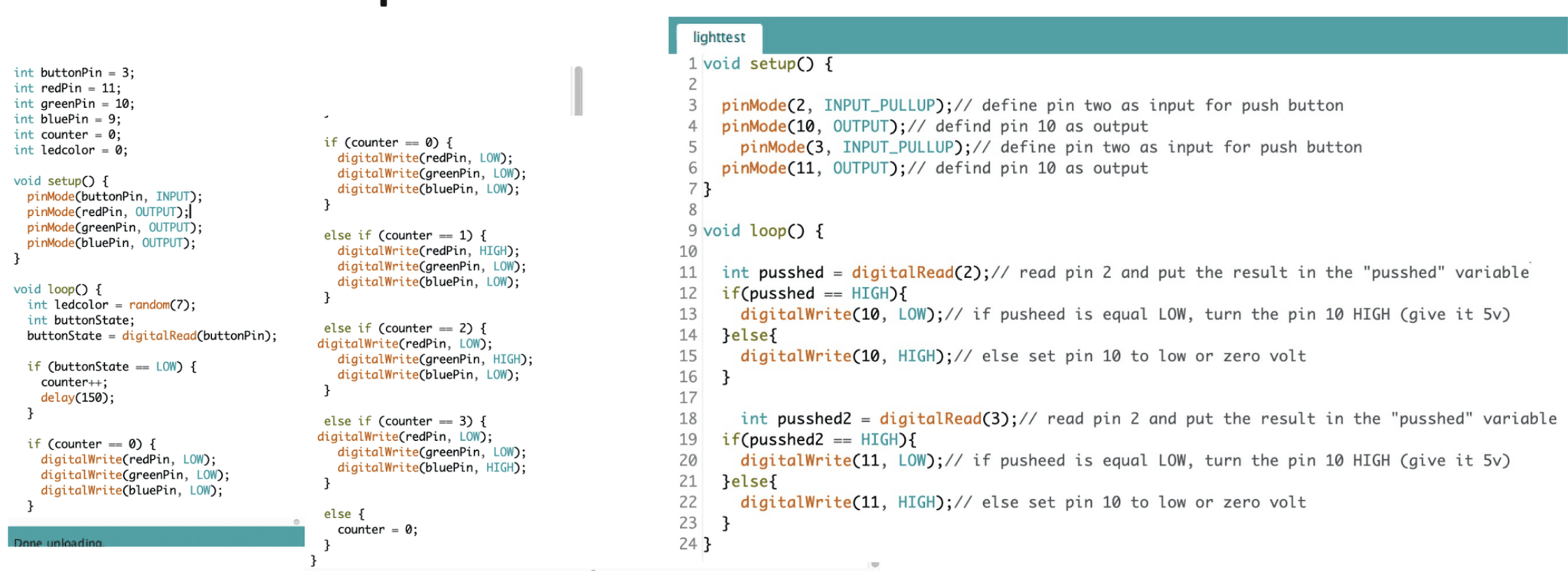

We used Processing to code the KANO to display the cards and the rules during the game. We used the Arduino for establishing the connection between the blocks and the base. The base has magnets that are connected to the Arduino which connect to the magnets of the blocks and illuminate the LEDs. The proof of concept code:

The Code

Skip all this code stuff ;)

KANO Code:

//-----------------------------------------value set up

// random card

int card;

//rules page

int rules;

//-----------------------------------------image set up

// Intro

PImage Intro;

// Rules

//PImage GameSetUp; PImage BlockCards; PImage GameCards; PImage Winning;

PImage Rules;

// Cards

PImage BlockOne; PImage BlockTwo; PImage BlockThree; PImage BlockFour; PImage BlockFive;

PImage Give; PImage Reverse; PImage Rumble; PImage Skip;

void setup() {

size(1200, 800);

background (35, 31, 32);

rules = 0;

//-----------------------------------------load all images

// Intro

Intro = loadImage("Intro.jpg");

// Rules

Rules = loadImage("Rules.jpg");

// Cards

BlockOne = loadImage("BlockOne.jpg"); BlockTwo = loadImage("BlockTwo.jpg"); BlockThree = loadImage("BlockThree.jpg"); BlockFour = loadImage("BlockFour.jpg"); BlockFive = loadImage("BlockFive.jpg");

Give = loadImage("Give.jpg"); Reverse = loadImage("Reverse.jpg"); Rumble = loadImage("Rumble.jpg"); Skip = loadImage("Skip.jpg");

image(Intro, 0, 0);

}

void draw() {

}

void mouseClicked() {

// To New Game

//needs to route to Intro (top right hand corner)

if (mouseX >= 600 && mouseY <= 400) {

rules = 0;

image(Intro, 0, 0);

}

// To New Card

// needs to route to random card (bottom right hand corner)

if (mouseX >= 600 && mouseY >= 400) {

rules = 0;

// picking a card

card = int(random(9));

println(card);

switch (card) {

case 1:

image (BlockOne, 0, 0);

break;

case 2:

image (BlockTwo, 0, 0);

break;

case 3:

image (BlockThree, 0, 0);

break;

case 4:

image (BlockFour, 0, 0);

break;

case 5:

image (BlockFive, 0, 0);

break;

case 6:

image (Give, 0, 0);

break;

case 7:

image (Reverse, 0, 0);

break;

case 8:

image (Rumble, 0, 0);

break;

case 9:

image (Skip, 0, 0);

break;

}

// To Rules

// needs to route to rules (top left hand corner)

if(mouseX <= 600 && mouseY <= 400) {

image(Rules, 0,0);}

}

Arduino Code:

#include <FastLED.h>

#include <elapsedMillis.h>

#define NUM_LEDS 60

CRGBArray <NUM_LEDS> leds[5];

int color[5][3] = {

{0, 100, 75}, //red

{219, 100, 75}, //green

{142, 100, 75}, //blue

{300, 100, 75}, //yellow

{0, 0, 75} //white

};

int hues[5] = {map(color[0][0],0,360,0,255),map(color[1][0],0,360,0,255),map(color[2][0],0,360,0,255),map(color[3][0],0,360,0,255),map(color[4][0],0,360,0,255)};

int sats[5] = {map(color[0][1],0,100,0,255),map(color[1][1],0,100,0,255),map(color[2][1],0,100,0,255),map(color[3][1],0,100,0,255),map(color[4][1],0,100,0,255)};

int vals[5] = {map(color[0][2],0,100,0,255),map(color[1][2],0,100,0,255),map(color[2][2],0,100,0,255),map(color[3][2],0,100,0,255),map(color[4][2],0,100,0,255)};

int player1 = A0;

int player2 = A3;

int player3 = A2;

int player4 = A1;

int rumble = A4;

int SlatchPin = 11; // Latch pin of 74HC595 is connected to Digital pin 8

int SclockPin = 12; // Clock pin of 74HC595 is connected to Digital pin 7

int SdataPin = 10; // Data pin of 74HC595 is connected to Digital pin 4

byte butts = 0;

int death;

int wait = 10000;

int amount;

int wait2 = 5000;

int min_ = 2;

int max_ = 20;

unsigned int interval = 5000;

static uint8_t hue;

void setup() {

Serial.begin(9600);

pinMode(player1, INPUT_PULLUP); //Player 1

pinMode(player2, INPUT_PULLUP); //Player 2

pinMode(player3, INPUT_PULLUP); //Player 3

pinMode(player4, INPUT_PULLUP); //Player 4

pinMode(rumble, INPUT_PULLUP); //RuMbLe

FastLED.addLeds<NEOPIXEL,9>(leds[0], NUM_LEDS); //Player 1

FastLED.addLeds<NEOPIXEL,8>(leds[1], NUM_LEDS); //Player 2

FastLED.addLeds<NEOPIXEL,7>(leds[2], NUM_LEDS); //Player 3

FastLED.addLeds<NEOPIXEL,6>(leds[3], NUM_LEDS); //Player 4

FastLED.addLeds<NEOPIXEL,5>(leds[4], 100); //Base

pinMode(SlatchPin, OUTPUT);

pinMode(SdataPin, OUTPUT);

pinMode(SclockPin, OUTPUT);

}

void Player(elapsedMillis timeElapsed, int z, int interval){

while(timeElapsed < interval){

for(int i = 0; i < NUM_LEDS/2; i++){

leds[z].fadeToBlackBy(40);

leds[z][i] = CHSV(hues[z],sats[z],vals[z]);

leds[z](NUM_LEDS/2,NUM_LEDS-1) = leds[z](NUM_LEDS/2 - 1 ,0);

FastLED.delay(33);

}

randomSeed(analogRead(0));

amount = random(min_,max_);

for(int i = 0; i < NUM_LEDS/2; i++){

leds[z][i] = CHSV(0, 0, 0);

FastLED.show();

}

for(int i = 0; i < amount; i++){

leds[z][i] = CHSV(hues[z],sats[z],vals[z]);

FastLED.delay(33);

}

delay(wait2);

}

void updateShiftRegister(){

digitalWrite(SlatchPin, LOW);

shiftOut(SdataPin, SclockPin, LSBFIRST, butts);

digitalWrite(SlatchPin, HIGH);

}

void loop() {

butts = 0; // Initially turns all the LEDs off, by giving the variable 'leds' the value 0

updateShiftRegister();

elapsedMillis timeElapsed;

if(digitalRead(player1) == LOW){

bitSet(butts, 0);

updateShiftRegister();

Player(timeElapsed, 0, interval);

}else if(digitalRead(player2) == LOW){

bitSet(butts, 3);

updateShiftRegister();

Player(timeElapsed, 1, interval);

}else if(digitalRead(player3) == LOW){

bitSet(butts, 2);

updateShiftRegister();

Player(timeElapsed, 2, interval);

}else if(digitalRead(player4) == LOW){

bitSet(butts, 1);

updateShiftRegister();

Player(timeElapsed, 3, interval);

}else if(digitalRead(rumble) == LOW){

bitSet(butts, 4);

updateShiftRegister();

Rumble(timeElapsed);

}

for(int i = 0; i < NUM_LEDS/2; i++){

for(int z = 0; z < 5; z++){

leds[z][i] = CHSV(hues[z],sats[z],vals[z]);

}

FastLED.show();

}

void Rumble(elapsedMillis timeElapsed){

while(timeElapsed < interval){

for(int i = 0; i < NUM_LEDS/2; i++){

for(int z = 0; z < 5; z++){

leds[z][i] = CHSV(hue++,255,100);

}

FastLED.show();

}

randomSeed(analogRead(5));

death = random(0,3);

switch(death){

case 0:

for(int i = 0; i < NUM_LEDS/2; i++){

for(int z = 0; z < 5; z++){

leds[z][i] = CHSV(hues[0],sats[0],vals[0]);

}

FastLED.show();

}

//delay(wait);

break;

case 1:

for(int i = 0; i < NUM_LEDS/2; i++){

for(int z = 0; z < 5; z++){

leds[z][i] = CHSV(hues[1],sats[1],vals[1]);

}

FastLED.show();

}

//delay(wait);

break;

case 2:

for(int i = 0; i < NUM_LEDS/2; i++){

for(int z = 0; z < 5; z++){

leds[z][i] = CHSV(hues[2],sats[2],vals[2]);

}

FastLED.show();

}

//delay(wait);

break;

case 3:

for(int i = 0; i < NUM_LEDS/2; i++){

for(int z = 0; z < 5; z++){

leds[z][i] = CHSV(hues[3],sats[3],vals[3]);

}

FastLED.show();

}

//delay(wait);

break;

}

switch(death){

case 0:

Player(timeElapsed,0, 10000);

break;

case 1:

Player(timeElapsed,1, 10000);

break;

case 2:

Player(timeElapsed,2, 10000);

break;

case 3:

Player(timeElapsed,3, 10000);

break;

}

Hardware Processing Code for Board Lights:

//#include <FastLED.h>

//#define NUM_LEDS 30

//CRGBArray<NUM_LEDS> leds;

const int switch_12 = 12;

const int switch_11 = 11;

const int switch_10 = 10;

const int ledRed = 3;

const int ledRed = 5;

const int ledRed = 6;

int switchState_12;

int switchState_11;

int switchState_10;

void setup() {

//FastLED.addLeds<NEOPIXEL,9>(leds, NUM_LEDS);

Serial.begin(9600);

pinMode(ledRed, OUTPUT);

pinMode(ledBlue, OUTPUT);

pinMode(ledGreen, OUTPUT);

pinMode(switch_12, INPUT); //player 1

pinMode(switch_11, INPUT); //player 2

pinMode(switch_10, INPUT); //rumble

}

void loop() {

switchState_12 = digitalRead(switch_12);

switchState_11 = digitalRead(switch_11);;

switchState_10 = digitalRead(switch_10);;

if (switchState_12 ==HIGH)

//red

{digitalWrite(ledRed, 255);

digitalWrite(ledRed, 0);

}

else{

(switchState_11 ==HIGH)

//orange

{digitalWrite(ledRed, 255);

digitalWrite(ledRed, 0);

digitalWrite(ledRed, 165);

else{

(switchState_10 ==HIGH)

//orange

{digitalWrite(ledRed, 255);

digitalWrite(ledRed, 0);

digitalWrite(ledRed, 165);

}

// static uint8_t hue;

// for(int i = 0; i < NUM_LEDS/2; i++) {

// // fade everything out

// leds.fadeToBlackBy(40);

// // let's set an led value

// leds[i] = CHSV(hue++,255,255);

// // now, let's first 20 leds to the top 20 leds,

// leds(NUM_LEDS/2,NUM_LEDS-1) = leds(NUM_LEDS/2 - 1 ,0);

// FastLED.delay(33);

// }

}

"Sudden Death" Code:

//decide the amount of death

#include <FastLED.h>

#include <elapsedMillis.h>

#define NUM_LEDS 40

CRGBArray <NUM_LEDS> leds;

void setup() {

pinMode(11, INPUT);

FastLED.addLeds<NEOPIXEL,9>(leds, NUM_LEDS);

}

void loop() {

static uint8_t hue;

elapsedMillis timeElapsed;

unsigned int interval = 3000;

if(digitalRead(11) == HIGH){

while(timeElapsed < interval){

for(int i = 0; i < NUM_LEDS/2; i++){

leds.fadeToBlackBy(40);

leds[i] = CHSV(255,255,255);

leds(NUM_LEDS/2,NUM_LEDS-1) = leds(NUM_LEDS/2 - 1 ,0);

FastLED.delay(33);

}

int amount;

int wait2 = 5000;

randomSeed(analogRead(0));

amount = random(1,4);

for(int i = 0; i < NUM_LEDS/2; i++){

leds[i] = CRGB(0, 0, 0);

FastLED.show();

}

for(int i = 0; i < amount; i++){

leds[i] = CRGB(255, 0, 0);

FastLED.delay(33);

}

delay(wait2);

}else{

for(int i = 0; i < NUM_LEDS/2; i++){

leds[i] = CHSV(0, 0, 0);

FastLED.show();

}

"Random LED" Code:

//decide who dies

#include <FastLED.h>

#include <elapsedMillis.h>

#define NUM_LEDS 40

CRGBArray <NUM_LEDS> leds;

void setup() {

Serial.begin(9600);

pinMode(11, INPUT);

FastLED.addLeds<NEOPIXEL,9>(leds, NUM_LEDS);

}

void loop() {

static uint8_t hue;

elapsedMillis timeElapsed;

unsigned int interval = 5000;

if(digitalRead(11) == HIGH){

while(timeElapsed < interval){

for(int i = 0; i < NUM_LEDS/2; i++){

leds[i] = CHSV(hue++, 255, 100);

FastLED.show();

}

int death;

int wait = 10000;

randomSeed(analogRead(0));

death = random(0,3);

Serial.print(death);

switch(death){

case 0:

for(int i = 0; i < NUM_LEDS/2; i++){

leds[i] = CRGB(255, 0, 0);

FastLED.show();

}

delay(wait);

break;

case 1:

for(int i = 0; i < NUM_LEDS/2; i++){

leds[i] = CRGB(0, 255, 0);

FastLED.show();

}

delay(wait);

break;

case 2:

for(int i = 0; i < NUM_LEDS/2; i++){

leds[i] = CRGB(0, 0, 255);

FastLED.show();

}

delay(wait);

break;

case 3:

for(int i = 0; i < NUM_LEDS/2; i++){

leds[i] = CRGB(252, 3, 211);

FastLED.show();

}

delay(wait);

break;

}

}else{

for(int i = 0; i < NUM_LEDS/2; i++){

leds[i] = CHSV(0, 0, 0);

FastLED.show();

}

Testing & Feedback

We gathered immediate feedback on usability and rulebook clarity. These rapid insights helped us refine the language and improve the gameplay experience.

Testing & Feedback

We gathered immediate feedback on usability and rulebook clarity. These rapid insights helped us refine the language and improve the gameplay experience.

Testing & Feedback

We gathered immediate feedback on usability and rulebook clarity. These rapid insights helped us refine the language and improve the gameplay experience.

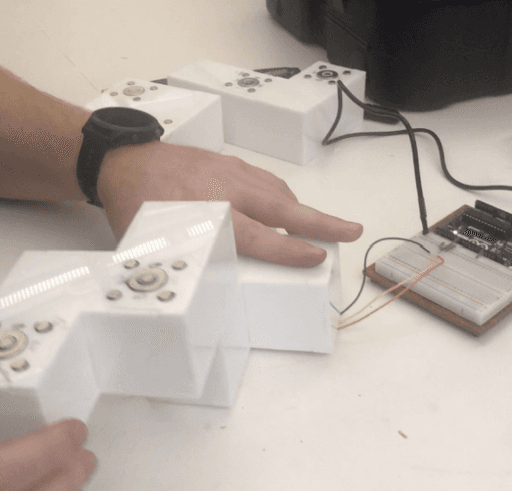

Blocks illuminate as they are placed:

Kano screen for the digital cards:

Sudden death!:

Findings

In our proof of concept phase, we used user testing to establish our potential limitations and liabilities that we would be facing during the building of the project:

Findings

In our proof of concept phase, we used user testing to establish our potential limitations and liabilities that we would be facing during the building of the project:

Findings

In our proof of concept phase, we used user testing to establish our potential limitations and liabilities that we would be facing during the building of the project:

The strength of the magnets might be too strong for children to handle safely (snapping fingers). Our current magnets have 8.5-24 lbs of pull/hold (https://www.kjmagnetics.com/proddetail.asp?prod=RC62).
Solution: We found that washers are capable of reducing a magnet’s pull strength but not a magnet’s hold strength which would make them safer to interact with (https://www.kjmagnetics.com/blog.asp?p=block-or-extend). We now have about 20lbs hold but a weaker pull.
Only being able to stack the blocks in one direction due to the nature of magnets.
Solution: We overcame the problem of only being able to stack the blocks in one direction by putting one magnet down the middle of every block that will hold the data and the rest of the outer magnets will be the charged magnets.

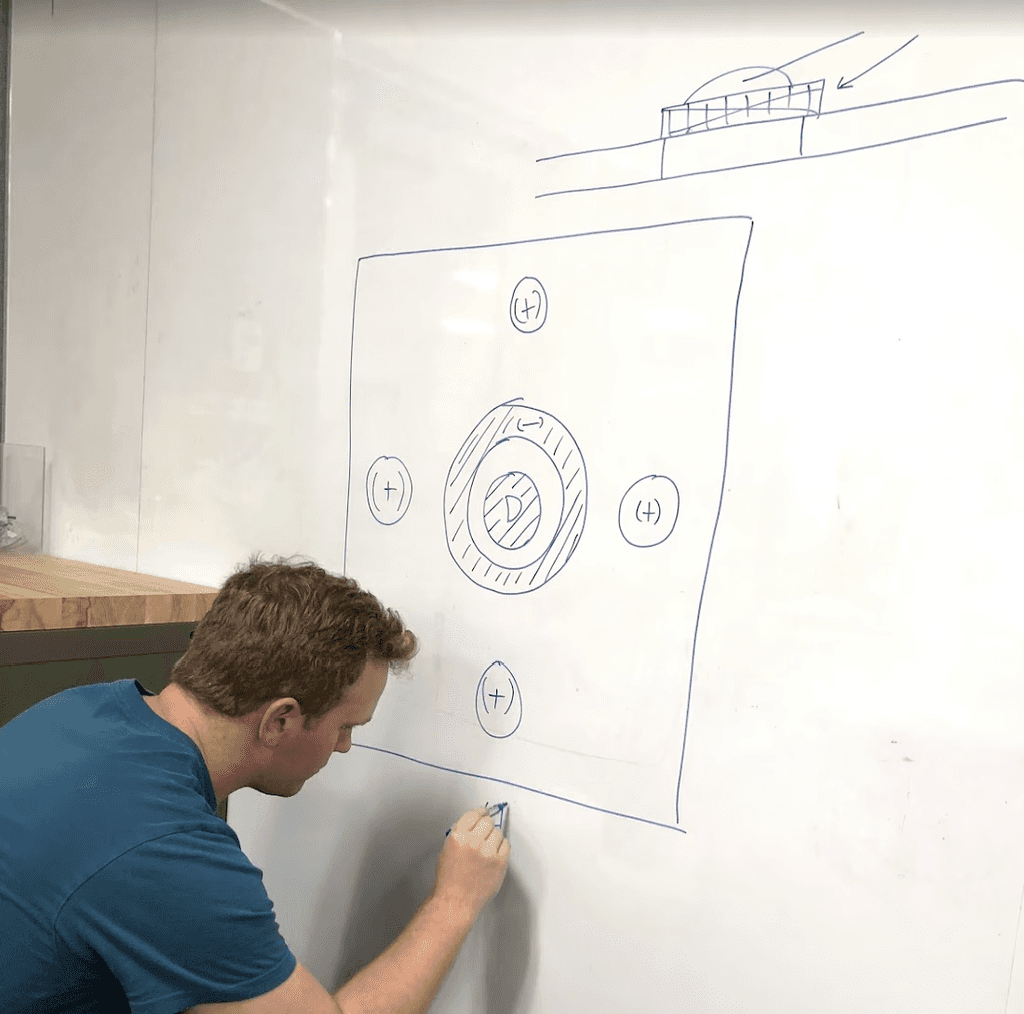

Revised polarization map charting:

Deliver

Through iterative prototyping and ongoing playtesting, we refined the game into a cohesive, chaos-fueled experience that still felt fair, strategic, and fun. We delivered a fully playable prototype that blended physical interaction with digital logic.

Block Force Trauma: It’s not just a game. It’s structural survival.

Powered by a fully interactive game board and digital card system, every move counts. Will your strategy hold strong—or crumble under pressure? Block Force Trauma is a high-energy, building block game with reactive lights and unpredictable rumble effects. Players race to build the tallest, most stable tower—while sabotaging their opponents and surviving surprise disruptions. Designed to teach strategic thinking through play, the game blends skill, luck, and a touch of mayhem. Watch out for flashing lights, triggered quakes, and shifting blocks that can send your tower tumbling. Whether you're outsmarting opponents or racing against instability, Block Force Trauma is all about quick thinking, steady hands, and big laughs.

Block Force Trauma: It’s not just a game. It’s structural survival.

Stack high, think fast, and brace for the rumble.

In this action-packed tower-building game, players go head-to-head to build the tallest structure—while the game fights back. With reactive light-up blocks and randomized quake events, no tower is ever truly safe.

Stack high, think fast, and brace for the rumble.

The Board

A digitally responsive game board with an embedded motor and wiring system, capable of delivering randomized “rumbles” based on in-game triggers.

The Board

A digitally responsive game board with an embedded motor and wiring system, capable of delivering randomized “rumbles” based on in-game triggers.

The Board

A digitally responsive game board with an embedded motor and wiring system, capable of delivering randomized “rumbles” based on in-game triggers.

The Blocks

Reactive light-up blocks, programmed to turn off selectively when a “rumble” occurred, indicating which pieces must be removed—adding urgency and unpredictability.

The Blocks

Reactive light-up blocks, programmed to turn off selectively when a “rumble” occurred, indicating which pieces must be removed—adding urgency and unpredictability.

The Blocks

Reactive light-up blocks, programmed to turn off selectively when a “rumble” occurred, indicating which pieces must be removed—adding urgency and unpredictability.

The Gameplay

A rule system and UI logic that guided gameplay through visual cues and tactile input, minimizing ambiguity and reinforcing the game’s feedback loop.

The Gameplay

A rule system and UI logic that guided gameplay through visual cues and tactile input, minimizing ambiguity and reinforcing the game’s feedback loop.

The Gameplay

A rule system and UI logic that guided gameplay through visual cues and tactile input, minimizing ambiguity and reinforcing the game’s feedback loop.

The Digital Cards

A card system implemented entirely through the Kano computing interface, eliminating physical cards and allowing real-time logic for drawing, discarding, and activating special actions like the rumble mechanic.

The Digital Cards

The Rulebook

Short and sweet- Collaborative integration of UX design and engineering, ensuring the game flowed naturally, and that players could learn through doing—rather than reading lengthy instructions.

The Rulebook

Short and sweet- Collaborative integration of UX design and engineering, ensuring the game flowed naturally, and that players could learn through doing—rather than reading lengthy instructions.

The Rulebook

Short and sweet- Collaborative integration of UX design and engineering, ensuring the game flowed naturally, and that players could learn through doing—rather than reading lengthy instructions.

Debrief

Block Force Trauma was a compelling next chapter in our game development journey. We proved that analog and digital design can meaningfully coexist in accessible, fun ways. Personally, I grew in translating physical experiences into interactive systems, bridging game design and UX thinking. Our playtesters responded positively to the new tech integration and appreciated the clarity of the revised ruleset—showing us the value of iterative user testing, system feedback, and collaborative design in crafting joyful chaos.
